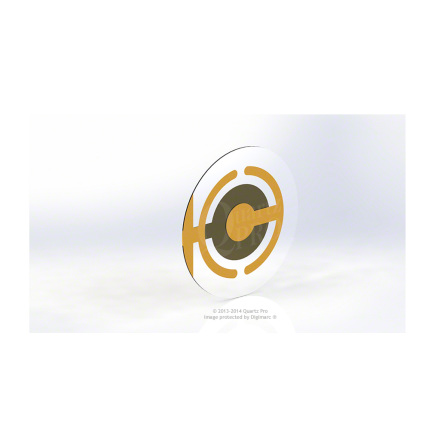

QCM 10 MHz 14 mm Cr/Au Custom 1

10+ 14,30 $
50+ 13,40 $
Stock status: 30pcs
10 sensors per package. For use in film thickess monitors. Very reliable function due to good adhesion of electrodes. Long operational life time. 180 degrees electrode flags for connection

Description

QUICK DATA for QCM 10 MHz 14 mm Cr/Au Custom 1



GENERAL

Item

Parameter

Value

1.0

Sensor design

Plano-Plano

2.0

Angle of cut

AT

3.0

Jig compability

Custom







ELECTRICAL

4.1

Nominal frequency

10.000 MHz

4.2

Center frequency

10.000 MHz

4.3

Frequency tolerance

+/- 20 KHz

4.4

Q-value

> 100 000

4.5

Shunt capacitance, C0

Typ. 10 pF

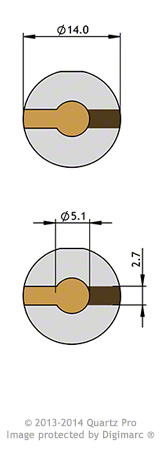

ELECTRODES

5.1

Front electrode diameter

5.1 mm

5.2

Front electrode material

Cr/Au, Chromium / Gold

5.3

Back electrode diameter

5.1 mm

5.4

Back electrode material

Cr/Au, Chromium / Gold

5.5

One sided contacting

No







MECHANICAL

6.1

Nominal blank diameter

14.0 mm

6.2

Crystal axes orientation

Yes

6.3

Surface appearance

Transparent

6.4

Bevel

No
 QCM 9 MHz 14 mm Cr/Au Custom

Datasheet

Document (1)

Specifications

Partno: QCM10140CrAu051-051-C1
Stock status: 30pcs
