QCM 5 MHz 14 mm Ti Balzer

10 sensors per package. For use in film thickess monitors. Very reliable function due to good adhesion of electrodes. Long operational life time. One sided circumference contact back side electrode.

Description



QUICK DATA forQCM 5 MHz 14 mm Ti Balzer



GENERAL

Item

Parameter

Value

1.0

Sensor design

Plano-Convex

2.0

Angle of cut

AT

3.0

Jig compability

Balzer







ELECTRICAL

4.1

Nominal frequency

5.000 MHz

4.2

Center frequency

4.960 MHz

4.3

Frequency tolerance

+/- 7 KHz

4.4

Q-value

> 150 000

4.5

Shunt capacitance, C0

Typ. 10 pF

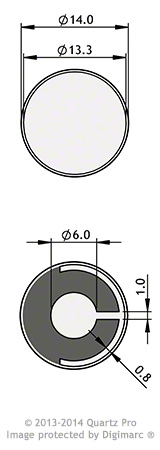

ELECTRODES

5.1

Front electrode diameter

13.3 mm

5.2

Front electrode material

Ti,   Titanium

5.3

Back electrode diameter

6.0 mm

5.4

Back electrode material

Cr/Ag,   Chromium / Silver

5.5

One sided contacting

No







MECHANICAL

6.1

Nominal blank diameter

14.0 mm

6.2

Crystal axes orientation

No

6.3

Surface appearance

Matte

6.4

Bevel

No


Datasheet
