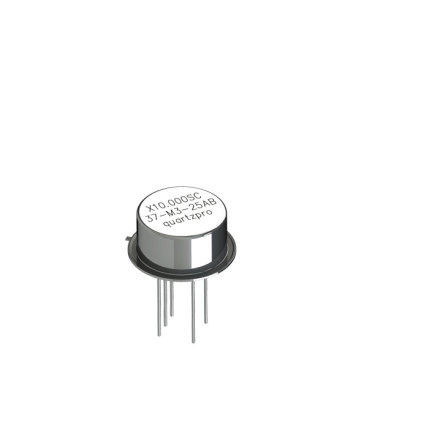

Quartz Crystal 5.000 MHz SC HC-37/U 3rd overtone CL 18pF

No price
Stock status: 0pcs
Well documented / high performance Quartz Crystal with highest Q value possible enabling very low Phase Noise and low aging. For use in high performance and high reliability OCXO applications. Improved g-sensitivity due to 4 point mounting.

Description

Specification for Crystal Part # X5.0000SC-37-M3-18AB


1. GENERAL

Item

Parameter

Condition

Value



Tolerance

Unit

Note

1.1

Angle of cut



SC









1.2

Mode of operation

Overtone

3rd









1.3

Circuit type

Series resonance











1.4a

Circuit type

Parallell resonance











1.4b

Load capacitance, CL



18



+/- 1

pF



1.5

Drive level, nom P

Nominal P

50



+/- 10 %

uW



1.6

Drive level, max P

Maximum P





+/- 10 %

uW



1.7

Package

HC-37/U

 5.0





 mm

Max H

Quartz Crystal 5.000 MHz SC HC-37/U 3rd overtone CL 18pF

2. TEMPERATURE CHARACTERISTICS

Item

Parameter

Condition

Min.

Typ.

Max.

Unit

Note

2.1

Reference temperature, ref T



+90

+93

+100

˚C



2.2

Operating temperature range









˚C



2.3

Storage temperature range



-55



+105

˚C



















3. ELECTRICAL PARAMETERS

3.1

Motional resistance

R1

100

125

150

Ohm



3.2

Motional inductance

L1



10130



mH



3.2

Motional capacitance

C1

0.085

0.100

0.115

fF



3.3

Static shunt capacitance

C0

1.9

2.1

2.5

pF



3.4

Figure of merit

Q

2 000 000

 2 300 000

 2 5000 000

-



3.5

Shunt inductance

L0



422



μH

Optional C0 cancellation

















4. FREQUENCY CHARACTERISTICS

4.1

Nominal frequency

@ ref T, CL and nom P



5.000 000



MHz



4.2

Frequency accuracy

@ ref T, CL and nom P

-1.5



+1.5

ppm



4.3

Drive level dependency, R1(P)

R1 max / R1 min





10

%

DLD sweep from 0.1 uW — nom P

4.4

Drive level dependency, f1(P)

Δf / f nom







ppm

DLD Sweep from 0.1uW — nom P

4.5

Long term stability (aging)

First year

-10



+10

ppb

After 30 days of continues operation

4.6

Long term stability (aging)

After first year







ppb

After 30 days of continues operation
